Openstack 是一种开源且免费使用的云解决方案，使您能够通过各种补充服务构建私有基础设施即服务 (IaaS) 平台。 OpenStack 中的每个服务都提供一个应用程序编程接口 (API) 来促进集成。 OpenStack 中可用的关键组件将提供计算、网络和存储资源。它可以使用 openstack 工具从命令行界面进行操作，也可以通过其直观的仪表板进行操作，您可以在其中管理 OpenStack 云并监控其资源。
在本文中，我们详细介绍了在 Debian 12 Linux 计算机上本地设置私有 OpenStack 云所需的步骤。这是单节点安装，仅适用于家庭实验室学习和测试目的。我们正在使用手动方法安装其他解决方案，例如 Kolla 和 OpenStack Ansible。
在开始进行此设置之前，请确保您的计算机满足以下最低要求。
- 全新安装 Debian 12 Linux
- BIOS 中启用 CPU 虚拟化扩展
- root 用户或具有 sudo 权限的用户
- 2 个 vCPU
- 8GB 内存
- 20GB磁盘容量
- 良好的互联网连接
让我们开始！。
1. 准备环境
我们的环境有以下变量；
- Debian 12 服务器 IP 地址：192.168.1.2
- Debian 12 服务器主机名：osp01.home.cloudlabske.io
- 网络接口：eno1
- 默认 OpenStack 区域：RegionOne
- 默认域：默认
设置服务器主机名。
sudo hostnamectl set-hostname osp01.home.cloudlabske.io编辑 /etc/hosts 文件将服务器 IP 地址映射到配置的主机名。
$ sudo vim /etc/hosts
192.168.1.2 osp01.home.cloudlabske.io osp01在开始其他配置之前更新系统。假设您正在一台干净的 Debian 机器上工作。
sudo apt update && sudo apt upgrade -y可能需要重新启动。确认一下就可以了
[ -e /var/run/reboot-required ] && sudo reboot配置NTP时间同步。
- 使用 Systemd timesyncd
打开 timesyncd.conf 文件进行编辑并更新 NTP 服务器的地址。
$ sudo vim /etc/systemd/timesyncd.conf
[Time]
NTP=192.168.1.1重新启动 systemd-timesyncd 服务。
sudo systemctl restart systemd-timesyncd确认状态
sudo timedatectl timesync-status- 使用 Chrony
安装 Chrony 并配置 NTP 服务器以进行时间调整。 NTP 使用 123/UDP。
sudo apt -y install chrony vim您可以更改 NTP 服务器或使用默认服务器。
$ sudo vim /etc/chrony/chrony.conf
pool 2.debian.pool.ntp.org iburst将时区设置为您当前的位置
sudo timedatectl set-timezone Africa/Nairobi
sudo timedatectl set-ntp true确认设置
$ timedatectl
Local time: Wed 2024-01-31 21:47:22 EAT
Universal time: Wed 2024-01-31 18:47:22 UTC
RTC time: Wed 2024-01-31 18:47:22
Time zone: Africa/Nairobi (EAT, +0300)
System clock synchronized: yes
NTP service: active
RTC in local TZ: no重新启动 chrony 服务
sudo systemctl restart chrony手动同步系统时间。
$ sudo chronyc sources
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^- ntp1.icolo.io 2 6 37 57 +770us[ +770us] +/- 13ms
^* ntp0.icolo.io 2 6 37 57 -15us[ -895us] +/- 13ms
^- time.cloudflare.com 3 6 37 58 +3221us[+3221us] +/- 71ms
^- time.cloudflare.com 3 6 37 59 +3028us[+2156us] +/- 71ms2.安装MariaDB、RabbitMQ、Memcached
从这里我们可以切换到root用户帐户。
$ sudo -i
# or
$ sudo su -安装MariaDB数据库服务器
apt install mariadb-server -y调整最大数据库连接以避免连接超时。
# vim /etc/mysql/mariadb.conf.d/50-server.cnf
max_connections = 700更改后重新启动 MariaDB 服务。
systemctl restart mariadb还要安装Python MySQL扩展包。
apt install python3-pymysql完成后，安装 RabbitMQ、Memcached 和 Nginx Web 服务器。
apt install memcached rabbitmq-server nginx libnginx-mod-stream为OpenStack添加RabbitMQ用户，设置密码并授予权限。
rabbitmqctl add_user openstack StrongPassw0rd01
rabbitmqctl set_permissions openstack ".*" ".*" ".*"禁用默认的 nginx 网页。
unlink /etc/nginx/sites-enabled/default重新启动服务。
systemctl restart mariadb rabbitmq-server memcached nginx3. 安装和配置 Keystone
OpenStack 身份服务 (Keystone) 是身份验证、授权和服务目录的单点集成。
创建数据库，并授予用户适当的权限。
# mysql
create database keystone;
grant all privileges on keystone.* to keystone@'localhost' identified by 'StrongPassw0rd01';
flush privileges;
exit;安装 Keystone 及其依赖项，包括 OpenStack 客户端。
apt install keystone python3-openstackclient apache2 python3-oauth2client libapache2-mod-wsgi-py3 -y对于所有提示，请回答“否”。
编辑 keystone 配置文件并更改地址并配置数据库连接设置和令牌提供程序。
# vim /etc/keystone/keystone.conf
# Specify Memcache Server on line 363
memcache_servers = localhost:11211
# Add MariaDB connection information around line 543:
[database]
connection = mysql+pymysql://keystone:StrongPassw0rd01@localhost/keystone
# Set token provider in line 2169
provider = fernet通过运行以下命令，使用数据填充身份服务数据库。
su -s /bin/bash keystone -c "keystone-manage db_sync"安全地忽略“忽略异常：...”错误。
接下来我们初始化 Fernet 密钥存储库：
keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
keystone-manage credential_setup --keystone-user keystone --keystone-group keystone引导身份服务。使用最新版本的 OpenStack keystone 身份可以在所有接口的同一端口上运行。
export controller=$(hostname -f)
keystone-manage bootstrap --bootstrap-password StrongPassw0rd01 \
--bootstrap-admin-url https://$controller:5000/v3/ \
--bootstrap-internal-url https://$controller:5000/v3/ \
--bootstrap-public-url https://$controller:5000/v3/ \
--bootstrap-region-id RegionOne按照之前在 Apache 配置文件中设置的方式设置服务器 FQDN。
# vim /etc/apache2/apache2.conf
ServerName osp01.home.cloudlabske.io为 keystone 创建 Apache VirtualHost 配置。这将使我们能够使用 FQDN 访问 API，而不是使用 IP 寻址。
vim /etc/apache2/sites-available/keystone.conf修改并粘贴以下内容。但请记住将 SSL 路径替换为您的路径。
1. 使用 Let's Encrypt
请参阅以下有关使用 Let's Encrypt 的指南。
- 如何在 Linux 上生成 Let’s Encrypt SSL 证书
- 在专用网络上使用 Cloudflare 生成 Let’s Encrypt SSL 证书
- 如何生成 Let's Encrypt 通配符 SSL 证书
在此示例中使用的 SSL 证书如下。
- /etc/letsencrypt/live/osp01.home.cloudlabske.io/cert.pem
- /etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem
- /etc/letsencrypt/live/osp01.home.cloudlabske.io/chain.pem
2.使用OpenSSL
对于 OpenSSL 自签名证书，生成如下。
# vim /etc/ssl/openssl.cnf
[ home.cloudlabske.io ]
subjectAltName = DNS:osp01.home.cloudlabske.io
# Generate certificates
cd /etc/ssl/private
openssl genrsa -aes128 2048 > openstack_server.key
openssl rsa -in server.key -out openstack_server.key
openssl req -utf8 -new -key openstack_server.key -out openstack_server.csr
openssl x509 -in openstack_server.csr -out openstack_server.crt -req -signkey openstack_server.key -extfile /etc/ssl/openssl.cnf -extensions home.cloudlabske.io -days 3650
chmod 600 server.key密钥和证书的路径将是。
- /etc/ssl/private/openstack_server.crt
- /etc/ssl/private/openstack_server.key
修改以下内容以适合您的环境。
Listen 5000
<VirtualHost *:5000>
SSLEngine on
SSLHonorCipherOrder on
SSLCertificateFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/cert.pem
SSLCertificateKeyFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem
SSLCertificateChainFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/chain.pem
WSGIScriptAlias / /usr/bin/keystone-wsgi-public
WSGIDaemonProcess keystone-public processes=5 threads=1 user=keystone group=keystone display-name=%{GROUP}
WSGIProcessGroup keystone-public
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
LimitRequestBody 114688
<IfVersion >= 2.4>
ErrorLogFormat "%{cu}t %M"
</IfVersion>
ErrorLog /var/log/apache2/keystone.log
CustomLog /var/log/apache2/keystone_access.log combined
<Directory /usr/bin>
Require all granted
</Directory>
</VirtualHost>
Alias /identity /usr/bin/keystone-wsgi-public
<Location /identity>
SetHandler wsgi-script
Options +ExecCGI
WSGIProcessGroup keystone-public
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
</Location>启用所需的 Apache 模块和 keystone Web 配置。
a2enmod ssl
a2ensite keystone
systemctl disable --now keystone
systemctl restart apache2为 OpenStack 客户端生成 keystone 访问文件。
export controller=$(hostname -f)
tee ~/keystonerc<<EOF
export OS_PROJECT_DOMAIN_NAME=default
export OS_USER_DOMAIN_NAME=default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=StrongPassw0rd01
export OS_AUTH_URL=https://$controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
EOF设置权限并获取文件以使用它。
chmod 600 ~/keystonerc
source ~/keystonerc
echo "source ~/keystonerc " >> ~/.bashrc创建项目
创建服务项目，其中将包含您添加到环境中的每项服务的唯一用户。
root@osp01 ~(keystone)$ openstack project create --domain default --description "Service Project" service
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | Service Project |
| domain_id | default |
| enabled | True |
| id | 1067895d9b99452b8d1758eda755c7bc |
| is_domain | False |
| name | service |
| options | {} |
| parent_id | default |
| tags | [] |
+-------------+----------------------------------+
root@osp01 ~(keystone)$ openstack project list
+----------------------------------+---------+
| ID | Name |
+----------------------------------+---------+
| 1067895d9b99452b8d1758eda755c7bc | service |
| 9a102dfdf9a54e8382fefdca727b2553 | admin |
+----------------------------------+---------+
root@osp01 ~(keystone)$4.安装并配置Glance（图像服务）
OpenStack 镜像服务 (glance) 允许集群用户使用 REST API 发现、注册和检索虚拟机镜像。使用 API，您可以查询虚拟机映像元数据并检索实际映像。虚拟机映像可通过映像服务在多个位置提供。
添加数据库用户和密码一目了然。该数据库将存储虚拟机映像元数据。
# mysql
create database glance;
grant all privileges on glance.* to glance@'localhost' identified by 'StrongPassw0rd01';
flush privileges;
exit;将glance用户添加到Keystone服务项目中。
# openstack user create --domain default --project service --password StrongPassw0rd01 glance
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| default_project_id | 1067895d9b99452b8d1758eda755c7bc |
| domain_id | default |
| enabled | True |
| id | a4af040dceff40d1a01beb14d268a7d9 |
| name | glance |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+将admin角色添加到glance用户和服务项目中：
openstack role add --project service --user glance admin创建glance服务实体：
# openstack service create --name glance --description "OpenStack Image service" image
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Image service |
| enabled | True |
| id | db9cb71d9f2b41128784458b057d468d |
| name | glance |
| type | image |
+-------------+----------------------------------+将控制器 FQDN 保存为变量以方便使用。
export controller=$(hostname -f)在默认区域 RegionOne 中创建图像服务 API 端点。我们将创建公共、管理和内部端点。
# openstack endpoint create --region RegionOne image public https://$controller:9292
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 5f5a8246813e436ab31ebeb37b1bb843 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | db9cb71d9f2b41128784458b057d468d |
| service_name | glance |
| service_type | image |
| url | https://osp01.home.cloudlabske.io:9292 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne image internal https://$controller:9292
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 953c077f90944774a205f5244aa28ce8 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | db9cb71d9f2b41128784458b057d468d |
| service_name | glance |
| service_type | image |
| url | https://osp01.home.cloudlabske.io:9292 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne image admin https://$controller:9292
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 3788fbdc728f4e8fab7d370ba2559103 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | db9cb71d9f2b41128784458b057d468d |
| service_name | glance |
| service_type | image |
| url | https://osp01.home.cloudlabske.io:9292 |
+--------------+----------------------------------------+安装 OpenStack Glance 包
apt install glance -y对于所有自动配置选项，回答“否”。
配置 Glance API
该 API 接受图像 API 调用以进行图像发现、检索和存储。
备份当前的 Glance API 配置文件。
mv /etc/glance/glance-api.conf /etc/glance/glance-api.conf.orig创建新的 Glance API 配置文件。
vim /etc/glance/glance-api.conf粘贴并修改下面提供的值以适合您的环境。
- 在
[DEFAULT]部分中，配置 RabbitMQ 连接 - 在
[glance_store]部分中，配置本地文件系统存储和图像文件的位置 - 在
[database]部分中，配置数据库访问 - 在
[keystone_authtoken]和[paste_deploy]部分中，配置身份服务访问权限
[DEFAULT]
bind_host = 127.0.0.1
# RabbitMQ connection info
transport_url = rabbit://openstack:StrongPassw0rd01@localhost
enforce_secure_rbac = true
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[database]
# MariaDB connection info
connection = mysql+pymysql://glance:StrongPassw0rd01@localhost/glance
# keystone auth info
[keystone_authtoken]
www_authenticate_uri = https://osp01.home.cloudlabske.io:5000
auth_url = https://osp01.home.cloudlabske.io:5000
memcached_servers = 127.0.0.1:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = glance
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
[paste_deploy]
flavor = keystone
[oslo_policy]
enforce_new_defaults = true设置新文件权限。
chown root:glance /etc/glance/glance-api.conf
chmod 640 /etc/glance/glance-api.conf填充图像服务数据库：
su -s /bin/bash -c "glance-manage db_sync" glance启动并启用 Glance 服务。
systemctl restart glance-api && systemctl enable glance-api配置 Nginx
vim /etc/nginx/nginx.conf通过将 Glance 连接详细信息添加到代理请求进行修改。请记住为侦听地址、SSL 证书和密钥设置正确的值。
# Add the following to the end of file
stream {
upstream glance-api {
server 127.0.0.1:9292;
}
server {
listen 192.168.1.2:9292 ssl;
proxy_pass glance-api;
}
ssl_certificate "/etc/letsencrypt/live/osp01.home.cloudlabske.io/fullchain.pem";
ssl_certificate_key "/etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem";
}完成后重新启动 nginx Web 服务。
systemctl restart nginx5. 安装和配置Nova
OpenStack 计算是基础设施即服务 (IaaS) 系统的主要部分。它提供云计算系统的托管和管理。
OpenStack 计算服务的组件。
- nova-api 服务：接受并响应最终用户计算 API 调用。
- nova-api-metadata 服务：接受来自实例的元数据请求。
- nova-compute 服务：通过虚拟机管理程序 API 创建和终止虚拟机实例的工作守护进程。
- nova-scheduler 服务：从队列中获取虚拟机实例请求，并确定其在哪个计算服务器主机上运行。
- nova-conductor 模块：协调 nova-compute 服务和数据库之间的交互。
- nova-novncproxy 守护进程：提供通过 VNC 连接访问正在运行的实例的代理。
- nova-spicehtml5proxy 守护进程：提供通过 SPICE 连接访问正在运行的实例的代理。
- 队列：在守护进程之间传递消息的中心枢纽
- SQL 数据库：存储云基础架构的大多数构建时和运行时状态，包括可用实例类型、正在使用的实例、可用网络和项目。
1) 准备设置先决条件
在本指南中，我们选择的虚拟化是带有 libvirt 的 KVM。安装 KVM 和其他所需的实用程序。
apt install qemu-kvm libvirt-daemon libvirt-daemon-system bridge-utils libosinfo-bin virtinst确认 BIOS 中启用了 CPU 虚拟化扩展。
# lsmod | grep kvm
kvm_intel 380928 0
kvm 1142784 1 kvm_intel
irqbypass 16384 1 kvm在 MariaDB for Nova、Nova API、Placement、Nova cell 上添加用户和数据库。
# mysql
create database nova;
grant all privileges on nova.* to nova@'localhost' identified by 'StrongPassw0rd01';
create database nova_api;
grant all privileges on nova_api.* to nova@'localhost' identified by 'StrongPassw0rd01';
create database placement;
grant all privileges on placement.* to placement@'localhost' identified by 'StrongPassw0rd01';
create database nova_cell0;
grant all privileges on nova_cell0.* to nova@'localhost' identified by 'StrongPassw0rd01';
flush privileges;
exit创建nova用户：
# openstack user create --domain default --project service --password StrongPassw0rd01 nova
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| default_project_id | 1067895d9b99452b8d1758eda755c7bc |
| domain_id | default |
| enabled | True |
| id | 424afd4671ad49268bdbd14fe32b6fe2 |
| name | nova |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+为nova用户添加admin角色：
openstack role add --project service --user nova admin在服务项目中添加放置用户
openstack user create --domain default --project service --password StrongPassw0rd01 placement将管理员角色添加到展示位置用户：
openstack role add --project service --user placement admin创建nova服务入口
# openstack service create --name nova --description "OpenStack Compute service" compute
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Compute service |
| enabled | True |
| id | ba737aa8b0a240fab38bdf49b31a60f0 |
| name | nova |
| type | compute |
+-------------+----------------------------------+创建安置服务条目。
# openstack service create --name placement --description "OpenStack Compute Placement service" placement
+-------------+-------------------------------------+
| Field | Value |
+-------------+-------------------------------------+
| description | OpenStack Compute Placement service |
| enabled | True |
| id | ae365b6e32ec4db985ec9c6e7f685ae1 |
| name | placement |
| type | placement |
+-------------+-------------------------------------+定义 Nova API 主机
export controller=$(hostname -f)为 nova 创建公共端点。
# openstack endpoint create --region RegionOne compute public https://$controller:8774/v2.1/%\(tenant_id\)s
+--------------+-----------------------------------------------------------+
| Field | Value |
+--------------+-----------------------------------------------------------+
| enabled | True |
| id | 50890db0f27443ddb547d24786340330 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ba737aa8b0a240fab38bdf49b31a60f0 |
| service_name | nova |
| service_type | compute |
| url | https://osp01.home.cloudlabske.io:8774/v2.1/%(tenant_id)s |
+--------------+-----------------------------------------------------------+为 nova 创建专用端点。
# openstack endpoint create --region RegionOne compute internal https://$controller:8774/v2.1/%\(tenant_id\)s
+--------------+-----------------------------------------------------------+
| Field | Value |
+--------------+-----------------------------------------------------------+
| enabled | True |
| id | 96b3abd5ca314429b0602a2bc153af77 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ba737aa8b0a240fab38bdf49b31a60f0 |
| service_name | nova |
| service_type | compute |
| url | https://osp01.home.cloudlabske.io:8774/v2.1/%(tenant_id)s |
+--------------+-----------------------------------------------------------+为 nova 创建管理端点。
# openstack endpoint create --region RegionOne compute admin https://$controller:8774/v2.1/%\(tenant_id\)s
+--------------+-----------------------------------------------------------+
| Field | Value |
+--------------+-----------------------------------------------------------+
| enabled | True |
| id | 8fcd6f0a2d4c4816b09ca214e311597a |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ba737aa8b0a240fab38bdf49b31a60f0 |
| service_name | nova |
| service_type | compute |
| url | https://osp01.home.cloudlabske.io:8774/v2.1/%(tenant_id)s |
+--------------+-----------------------------------------------------------+为 nova 创建公共、私有和管理端点。
# openstack endpoint create --region RegionOne placement public https://$controller:8778
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 2fc42dd9223d41aea94779daa6a80e19 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ae365b6e32ec4db985ec9c6e7f685ae1 |
| service_name | placement |
| service_type | placement |
| url | https://osp01.home.cloudlabske.io:8778 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne placement internal https://$controller:8778
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | fd284797981540c2b219139edbdbdf69 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ae365b6e32ec4db985ec9c6e7f685ae1 |
| service_name | placement |
| service_type | placement |
| url | https://osp01.home.cloudlabske.io:8778 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne placement admin https://$controller:8778
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 4c40f9d36e384c6685b9f56e7d951329 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ae365b6e32ec4db985ec9c6e7f685ae1 |
| service_name | placement |
| service_type | placement |
| url | https://osp01.home.cloudlabske.io:8778 |
+--------------+----------------------------------------+2）安装并配置Nova服务
安装 Nova 软件包
apt install nova-api nova-scheduler nova-conductor nova-novncproxy python3-novaclient placement-api备份当前nova配置文件
mv /etc/nova/nova.conf /etc/nova/nova.conf.orig创建新配置
vim /etc/nova/nova.conf修改文件中的设置时进行粘贴。配置 RabbitMQ 连接、VNC、Glance API、
[DEFAULT]
allow_resize_to_same_host = True
osapi_compute_listen = 127.0.0.1
osapi_compute_listen_port = 8774
metadata_listen = 127.0.0.1
metadata_listen_port = 8775
state_path = /var/lib/nova
enabled_apis = osapi_compute,metadata
log_dir = /var/log/nova
# RabbitMQ connection details
transport_url = rabbit://openstack:StrongPassw0rd01@localhost
[api]
auth_strategy = keystone
[vnc]
enabled = True
novncproxy_host = 127.0.0.1
novncproxy_port = 6080
novncproxy_base_url = https://osp01.home.cloudlabske.io:6080/vnc_auto.html
# Glance connection info
[glance]
api_servers = https://osp01.home.cloudlabske.io:9292
[oslo_concurrency]
lock_path = $state_path/tmp
# MariaDB connection info
[api_database]
connection = mysql+pymysql://nova:StrongPassw0rd01@localhost/nova_api
[database]
connection = mysql+pymysql://nova:StrongPassw0rd01@localhost/nova
# Keystone auth info
[keystone_authtoken]
www_authenticate_uri = https://osp01.home.cloudlabske.io:5000
auth_url = https://osp01.home.cloudlabske.io:5000
memcached_servers = localhost:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
[placement]
auth_url = https://osp01.home.cloudlabske.io:5000
os_region_name = RegionOne
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = placement
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
[wsgi]
api_paste_config = /etc/nova/api-paste.ini
[oslo_policy]
enforce_new_defaults = true设置所有权和权限。
chgrp nova /etc/nova/nova.conf
chmod 640 /etc/nova/nova.conf设置 Nova 的控制台代理类型
sudo sed -i 's/^NOVA_CONSOLE_PROXY_TYPE=.*/NOVA_CONSOLE_PROXY_TYPE=novnc/g' /etc/default/nova-consoleproxy备份当前放置配置
mv /etc/placement/placement.conf /etc/placement/placement.conf.orig为 Nova 放置创建新的配置文件
vim /etc/placement/placement.conf调整配置并将其粘贴到文件中。
[DEFAULT]
debug = false
[api]
auth_strategy = keystone
[keystone_authtoken]
www_authenticate_uri = https://osp01.home.cloudlabske.io:5000
auth_url = https:/osp01.home.cloudlabske.io:5000
memcached_servers = localhost:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = placement
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
[placement_database]
connection = mysql+pymysql://placement:StrongPassw0rd01@localhost/placement创建放置 API
vim /etc/apache2/sites-available/placement-api.conf以下是要放入文件中的内容。您无需在此处进行任何更改。
Listen 127.0.0.1:8778
<VirtualHost *:8778>
WSGIScriptAlias / /usr/bin/placement-api
WSGIDaemonProcess placement-api processes=5 threads=1 user=placement group=placement display-name=%{GROUP}
WSGIProcessGroup placement-api
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
LimitRequestBody 114688
<IfVersion >= 2.4>
ErrorLogFormat "%{cu}t %M"
</IfVersion>
ErrorLog /var/log/apache2/placement_api_error.log
CustomLog /var/log/apache2/placement_api_access.log combined
<Directory /usr/bin>
Require all granted
</Directory>
</VirtualHost>
Alias /placement /usr/bin/placement-api
<Location /placement>
SetHandler wsgi-script
Options +ExecCGI
WSGIProcessGroup placement-api
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
</Location>设置正确的文件权限
chgrp placement /etc/placement/placement.conf
chmod 640 /etc/placement/placement.conf将 UWSGI 绑定地址更新为 localhost。
sed -i -e "s/UWSGI_BIND_IP=.*/UWSGI_BIND_IP=\"127.0.0.1\"/" /etc/init.d/nova-api
sed -i -e "s/UWSGI_BIND_IP=.*/UWSGI_BIND_IP=\"127.0.0.1\"/" /etc/init.d/nova-api-metadata启用 place-api apache 网站。
a2ensite placement-api完成后重新启动服务。
systemctl disable --now placement-api && systemctl restart apache2打开 Nginx 配置文件。
vim /etc/nginx/nginx.conf通过添加带有颜色的线条来更新。将 192.168.1.2 替换为您的服务器 IP 地址。
stream {
upstream glance-api {
server 127.0.0.1:9292;
}
server {
listen 192.168.1.2:9292 ssl;
proxy_pass glance-api;
}
upstream nova-api {
server 127.0.0.1:8774;
}
server {
listen 192.168.1.2:8774 ssl;
proxy_pass nova-api;
}
upstream nova-metadata-api {
server 127.0.0.1:8775;
}
server {
listen 192.168.1.2:8775 ssl;
proxy_pass nova-metadata-api;
}
upstream placement-api {
server 127.0.0.1:8778;
}
server {
listen 192.168.1.2:8778 ssl;
proxy_pass placement-api;
}
upstream novncproxy {
server 127.0.0.1:6080;
}
server {
listen 192.168.1.2:6080 ssl;
proxy_pass novncproxy;
}
ssl_certificate "/etc/letsencrypt/live/osp01.home.cloudlabske.io/fullchain.pem";
ssl_certificate_key "/etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem";
}导入所有必需的数据。
# Populate the placement database
su -s /bin/bash placement -c "placement-manage db sync"
# Populate the nova-api database
su -s /bin/bash nova -c "nova-manage api_db sync"
# Register the cell0 database
su -s /bin/bash nova -c "nova-manage cell_v2 map_cell0"
# Populate the nova database
su -s /bin/bash nova -c "nova-manage db sync"
# Create the cell1 cell
su -s /bin/sh nova -c "nova-manage cell_v2 create_cell --name cell1"停止与 Nova 操作相关的服务。
systemctl stop nova-api nova-api-metadata nova-conductor nova-scheduler nova-novncproxy重新启动 nginx 网络服务器
systemctl restart nginx然后启动其他服务
systemctl enable --now nova-api nova-api-metadata nova-conductor nova-scheduler nova-novncproxy验证 nova cell0 和 cell1 是否已正确注册：
# su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova
+-------+--------------------------------------+-----------------------------------+------------------------------------------------+----------+
| Name | UUID | Transport URL | Database Connection | Disabled |
+-------+--------------------------------------+-----------------------------------+------------------------------------------------+----------+
| cell0 | 00000000-0000-0000-0000-000000000000 | none:/ | mysql+pymysql://nova:****@localhost/nova_cell0 | False |
| cell1 | d3a70005-5861-427e-9bdf-984b15400d7e | rabbit://openstack:****@localhost | mysql+pymysql://nova:****@localhost/nova | False |
+-------+--------------------------------------+-----------------------------------+------------------------------------------------+----------+列出已注册的计算服务。
# openstack compute service list
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+
| ID | Binary | Host | Zone | Status | State | Updated At |
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+
| 6f75eb27-9c66-41c0-b0fa-15f1a48cb25c | nova-conductor | osp01 | internal | enabled | up | 2024-02-02T07:21:04.000000 |
| 802d523d-1f92-427b-9f90-691bf54268af | nova-scheduler | osp01 | internal | enabled | up | 2024-02-02T07:21:05.000000 |
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+3) 安装 Nova KVM 计算
安装 Nova KVM 计算包
apt install nova-compute nova-compute-kvm -y 打开nova配置文件。
vim /etc/nova/nova.conf按如下方式更新 VNC 设置。
[vnc]
enabled = True
server_listen = 192.168.1.2
server_proxyclient_address = 192.168.1.2
novncproxy_host = 127.0.0.1
novncproxy_port = 6080
ovncproxy_host = 127.0.0.1
novncproxy_port = 6080
novncproxy_base_url = https://osp01.home.cloudlabske.io:6080/vnc_auto.html完成后重新启动 nova-compute
systemctl restart nova-compute.service发现细胞并映射找到的宿主。
su -s /bin/bash nova -c "nova-manage cell_v2 discover_hosts"检查新的 nova 主机服务列表。
# openstack compute service list
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+
| ID | Binary | Host | Zone | Status | State | Updated At |
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+
| 6f75eb27-9c66-41c0-b0fa-15f1a48cb25c | nova-conductor | osp01 | internal | enabled | up | 2024-02-02T07:32:44.000000 |
| 802d523d-1f92-427b-9f90-691bf54268af | nova-scheduler | osp01 | internal | enabled | up | 2024-02-02T07:32:45.000000 |
| 83fd3604-7345-4258-a3a2-324900b04b8e | nova-compute | osp01 | nova | enabled | up | 2024-02-02T07:32:43.000000 |
+--------------------------------------+----------------+-------+----------+---------+-------+----------------------------+6.配置网络服务（Neutron）
OpenStack Networking (neutron) 提供了一个集成，用于创建由其他 OpenStack 服务管理的接口设备并将其附加到网络。
组件：
- neutron-server：接受 API 请求并将其路由到适当的 OpenStack 网络插件以执行操作。
- OpenStack 网络插件和代理：插入和拔出端口、创建网络或子网以及提供 IP 寻址。
- 消息队列：大多数 OpenStack 网络安装使用它来在 neutron-server 和各种代理之间路由信息
1）准备环境
为 Neutron 网络服务创建数据库和用户。
# mysql
create database neutron_ml2;
grant all privileges on neutron_ml2.* to neutron@'localhost' identified by 'StrongPassw0rd01';
flush privileges;
exit接下来，我们在 Keystone 上添加 Neutron 的用户或服务。
# openstack user create --domain default --project service --password StrongPassw0rd01 neutron
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| default_project_id | 1067895d9b99452b8d1758eda755c7bc |
| domain_id | default |
| enabled | True |
| id | 71d4813059f5472f852a946bdaf272f4 |
| name | neutron |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
# openstack role add --project service --user neutron admin
# openstack service create --name neutron --description "OpenStack Networking service" network
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Networking service |
| enabled | True |
| id | 7da12e4154ad4f97b8f449f01d6a56ec |
| name | neutron |
| type | network |
+-------------+----------------------------------+创建所需的端点。
# Save your server
export controller=$(hostname -f)
# openstack endpoint create --region RegionOne network public https://$controller:9696
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 3bc3eb0a234a46b68fa2190095f4cd53 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 7da12e4154ad4f97b8f449f01d6a56ec |
| service_name | neutron |
| service_type | network |
| url | https://osp01.home.cloudlabske.io:9696 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne network internal https://$controller:9696
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | 2bc933e3f8fc4238874adc2cf0b764f9 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 7da12e4154ad4f97b8f449f01d6a56ec |
| service_name | neutron |
| service_type | network |
| url | https://osp01.home.cloudlabske.io:9696 |
+--------------+----------------------------------------+
# openstack endpoint create --region RegionOne network admin https://$controller:9696
+--------------+----------------------------------------+
| Field | Value |
+--------------+----------------------------------------+
| enabled | True |
| id | fa110991eab34d4e9e1c639865ce2b14 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 7da12e4154ad4f97b8f449f01d6a56ec |
| service_name | neutron |
| service_type | network |
| url | https://osp01.home.cloudlabske.io:9696 |
+--------------+----------------------------------------+2）安装和配置Neutron
为 OpenStack 安装 Neutron 包
apt install neutron-server neutron-metadata-agent neutron-openvswitch-agent neutron-plugin-ml2 neutron-l3-agent neutron-metadata-agent openvswitch-switch python3-neutronclient neutron-dhcp-agent备份当前配置文件。
mv /etc/neutron/neutron.conf /etc/neutron/neutron.conf.orig创建新的配置文件
vim /etc/neutron/neutron.conf粘贴此处提供的内容时进行修改。
[DEFAULT]
bind_host = 127.0.0.1
bind_port = 9696
core_plugin = ml2
service_plugins = router
auth_strategy = keystone
state_path = /var/lib/neutron
dhcp_agent_notification = True
allow_overlapping_ips = True
notify_nova_on_port_status_changes = True
notify_nova_on_port_data_changes = True
# RabbitMQ connection info
transport_url = rabbit://openstack:StrongPassw0rd01@localhost
[agent]
root_helper = sudo /usr/bin/neutron-rootwrap /etc/neutron/rootwrap.conf
# Keystone auth info
[keystone_authtoken]
www_authenticate_uri = https://osp01.home.cloudlabske.io:5000
auth_url = https://osp01.home.cloudlabske.io:5000
memcached_servers = localhost:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
# MariaDB connection info
[database]
connection = mysql+pymysql://neutron:StrongPassw0rd01@localhost/neutron_ml2
# Nova auth info
[nova]
auth_url = https://osp01.home.cloudlabske.io:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = StrongPassw0rd01
# if using self-signed certs on Apache2 Keystone, turn to [true]
insecure = false
[oslo_concurrency]
lock_path = $state_path/tmp
[oslo_policy]
enforce_new_defaults = true编辑元数据代理配置并设置主机、代理共享密钥和内存缓存主机地址。
# vim /etc/neutron/metadata_agent.ini
nova_metadata_host = osp01.home.cloudlabske.io
nova_metadata_protocol = https
# specify any secret key you like
metadata_proxy_shared_secret = metadata_secret
# specify Memcache server
memcache_servers = localhost:11211备份 ml2 配置并创建一个新配置。
mv /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugins/ml2/ml2_conf.ini.orig
vim /etc/neutron/plugins/ml2/ml2_conf.ini如下更新新设置。
[DEFAULT]
[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types =
mechanism_drivers = openvswitch
extension_drivers = port_security
[ml2_type_flat]
[ml2_type_vxlan]
[securitygroup]
enable_security_group = True
enable_ipset = True通过将接口驱动程序设置为openvswitch来配置第3层代理。
# vim /etc/neutron/l3_agent.ini
interface_driver = openvswitch还有用于 openvswitch 的 DHCP 接口驱动程序并启用 dnsmasq dhcp 驱动程序。
# vim /etc/neutron/dhcp_agent.ini
# Confirm in line 18
interface_driver = openvswitch
# uncomment line 37
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq创建新的 Open vSwitch 代理配置文件。
mv /etc/neutron/plugins/ml2/openvswitch_agent.ini /etc/neutron/plugins/ml2/openvswitch_agent.ini.orig
vim /etc/neutron/plugins/ml2/openvswitch_agent.ini配置如下：
[DEFAULT]
[agent]
[ovs]
[securitygroup]
firewall_driver = openvswitch
enable_security_group = True
enable_ipset = True创建所需的文件并设置正确的权限
touch /etc/neutron/fwaas_driver.ini
chmod 640 /etc/neutron/{neutron.conf,fwaas_driver.ini}
chmod 640 /etc/neutron/plugins/ml2/{ml2_conf.ini,openvswitch_agent.ini}
chgrp neutron /etc/neutron/{neutron.conf,fwaas_driver.ini}
chgrp neutron /etc/neutron/plugins/ml2/{ml2_conf.ini,openvswitch_agent.ini}打开 Nova 配置并添加 Neutron 网络设置。
# vim /etc/nova/nova.conf
# add follows into the [DEFAULT] section
vif_plugging_is_fatal = True
vif_plugging_timeout = 300
# Add the following to the end : Neutron auth info
# the value of [metadata_proxy_shared_secret] is the same with the one in [metadata_agent.ini]
[neutron]
auth_url = https://osp01.home.cloudlabske.io:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = StrongPassw0rd01
service_metadata_proxy = True
metadata_proxy_shared_secret = metadata_secret
insecure = false更新 UWSGI_BIND_IP 绑定地址。
sed -i -e "s/UWSGI_BIND_IP=.*/UWSGI_BIND_IP=\"127.0.0.1\"/" /etc/init.d/neutron-api更新 nginx 流
vim /etc/nginx/nginx.conf添加用于代理的中子上游和服务器参数。
stream {
upstream glance-api {
server 127.0.0.1:9292;
}
server {
listen 192.168.1.2:9292 ssl;
proxy_pass glance-api;
}
upstream nova-api {
server 127.0.0.1:8774;
}
server {
listen 192.168.1.2:8774 ssl;
proxy_pass nova-api;
}
upstream nova-metadata-api {
server 127.0.0.1:8775;
}
server {
listen 192.168.1.2:8775 ssl;
proxy_pass nova-metadata-api;
}
upstream placement-api {
server 127.0.0.1:8778;
}
server {
listen 192.168.1.2:8778 ssl;
proxy_pass placement-api;
}
upstream novncproxy {
server 127.0.0.1:6080;
}
server {
listen 192.168.1.2:6080 ssl;
proxy_pass novncproxy;
}
upstream neutron-api {
server 127.0.0.1:9696;
}
server {
listen 192.168.1.2:9696 ssl;
proxy_pass neutron-api;
}
ssl_certificate "/etc/letsencrypt/live/osp01.home.cloudlabske.io/fullchain.pem";
ssl_certificate_key "/etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem";
}为 ml2_conf.ini 创建符号链接
ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini然后填充neutron数据库
su -s /bin/bash neutron -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugin.ini upgrade head"预期执行输出；
....
INFO [alembic.runtime.migration] Running upgrade 1e0744e4ffea -> 6135a7bd4425
INFO [alembic.runtime.migration] Running upgrade 6135a7bd4425 -> 8df53b0d2c0e
INFO [alembic.runtime.migration] Running upgrade 8df53b0d2c0e -> 1bb3393de75d, add qos policy rule Packet Rate Limit
INFO [alembic.runtime.migration] Running upgrade 1bb3393de75d -> c181bb1d89e4
INFO [alembic.runtime.migration] Running upgrade c181bb1d89e4 -> ba859d649675
INFO [alembic.runtime.migration] Running upgrade ba859d649675 -> e981acd076d3
INFO [alembic.runtime.migration] Running upgrade e981acd076d3 -> 76df7844a8c6, add Local IP tables
INFO [alembic.runtime.migration] Running upgrade 76df7844a8c6 -> 1ffef8d6f371, migrate RBAC registers from "target_tenant" to "target_project"
INFO [alembic.runtime.migration] Running upgrade 1ffef8d6f371 -> 8160f7a9cebb, drop portbindingports table
INFO [alembic.runtime.migration] Running upgrade 8160f7a9cebb -> cd9ef14ccf87
INFO [alembic.runtime.migration] Running upgrade cd9ef14ccf87 -> 34cf8b009713
INFO [alembic.runtime.migration] Running upgrade 34cf8b009713 -> I43e0b669096
INFO [alembic.runtime.migration] Running upgrade I43e0b669096 -> 4e6e655746f6
INFO [alembic.runtime.migration] Running upgrade 4e6e655746f6 -> 659cbedf30a1
INFO [alembic.runtime.migration] Running upgrade 659cbedf30a1 -> 21ff98fabab1
INFO [alembic.runtime.migration] Running upgrade 21ff98fabab1 -> 5881373af7f5
INFO [alembic.runtime.migration] Running upgrade 7d9d8eeec6ad -> a8b517cff8ab
INFO [alembic.runtime.migration] Running upgrade a8b517cff8ab -> 3b935b28e7a0
INFO [alembic.runtime.migration] Running upgrade 3b935b28e7a0 -> b12a3ef66e62
INFO [alembic.runtime.migration] Running upgrade b12a3ef66e62 -> 97c25b0d2353
INFO [alembic.runtime.migration] Running upgrade 97c25b0d2353 -> 2e0d7a8a1586
INFO [alembic.runtime.migration] Running upgrade 2e0d7a8a1586 -> 5c85685d616d
OK
root激活OVS接口。
ip link set up ovs-system停止中子服务。
systemctl stop neutron-api neutron-rpc-server neutron-l3-agent neutron-dhcp-agent neutron-metadata-agent neutron-openvswitch-agent nova-api nova-compute nginx启动中子服务。
systemctl start neutron-api neutron-rpc-server neutron-l3-agent neutron-dhcp-agent neutron-metadata-agent neutron-openvswitch-agent nova-api nova-compute nginx启用服务在系统启动时启动。
systemctl enable neutron-api neutron-rpc-server neutron-l3-agent neutron-dhcp-agent neutron-metadata-agent neutron-openvswitch-agent确认网络代理列表。
# openstack network agent list
+--------------------------------------+--------------------+-------+-------------------+-------+-------+---------------------------+
| ID | Agent Type | Host | Availability Zone | Alive | State | Binary |
+--------------------------------------+--------------------+-------+-------------------+-------+-------+---------------------------+
| 2c802774-b93a-45fb-b23b-aa9994237e23 | Metadata agent | osp01 | None | :-) | UP | neutron-metadata-agent |
| 52e59a27-59c3-45a3-bca0-1c55dae3281e | L3 agent | osp01 | nova | :-) | UP | neutron-l3-agent |
| 96e812a7-fb0f-4099-a989-1b203843d8c8 | Open vSwitch agent | osp01 | None | :-) | UP | neutron-openvswitch-agent |
| e02cf121-ed3e-4a5e-9cf8-87dc28aa28be | DHCP agent | osp01 | nova | :-) | UP | neutron-dhcp-agent |
+--------------------------------------+--------------------+-------+-------------------+-------+-------+---------------------------+3）配置Neutron Flat网络
确认您的接口在服务器上激活。
$ ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eno1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
link/ether 1c:69:7a:ab:be:de brd ff:ff:ff:ff:ff:ff
altname enp0s31f6
3: ovs-system: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/ether 7e:b9:25:db:58:bd brd ff:ff:ff:ff:ff:ff
4: br-int: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether 9e:91:4a:20:26:4f brd ff:ff:ff:ff:ff:ff打开网络设置文件并调整为与下图类似。
# vim /etc/network/interfaces
auto eno1
iface eno1 inet manual
auto br-eno1
iface br-eno1 inet static
address 192.168.1.2
netmask 255.255.255.0
gateway 192.168.1.1
dns-nameservers 192.168.1.1
auto ovs-system
iface ovs-system inet manual代替
- eno1 替换为您的物理网络接口名称
- br–eno1 要添加的桥。
- 192.168.1.2 为您的计算机 IP 地址，255.255.255.0 为网络掩码
- 192.168.1.1 也是 192.168.1.1 的网关和 DNS 服务器。
输入接口名称和桥名称作为变量。
INT_NAME=eno1
BR_NAME=br-eno1将 OVS 桥添加到系统中。
ovs-vsctl add-br $BR_NAME
ip link set $INT_NAME up
ip link set $BR_NAME up将端口添加到网桥
ovs-vsctl add-port $BR_NAME $INT_NAME修改openvswitch_agent.ini并进行物理桥映射。
# vim /etc/neutron/plugins/ml2/openvswitch_agent.ini
# add a line undet [ovs] section
[ovs]
bridge_mappings = physnet1:br-eno1由于我们使用平面网络，因此将网络指定为映射到上面的网桥。
# vim /etc/neutron/plugins/ml2/ml2_conf.ini
[ml2_type_flat]
flat_networks = physnet1重新启动 neutron 服务。
systemctl restart neutron-api neutron-rpc-server neutron-openvswitch-agent4) 创建虚拟网络
定义项目ID
projectID=$(openstack project list | grep service | awk '{print $2}')创建共享网络
# openstack network create --project $projectID \
--share --provider-network-type flat --provider-physical-network physnet1 private
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2024-02-02T08:45:27Z |
| description | |
| dns_domain | None |
| id | 36577b59-f6e1-4844-a0d8-a277c9ddc780 |
| ipv4_address_scope | None |
| ipv6_address_scope | None |
| is_default | False |
| is_vlan_transparent | None |
| mtu | 1500 |
| name | private |
| port_security_enabled | True |
| project_id | 1067895d9b99452b8d1758eda755c7bc |
| provider:network_type | flat |
| provider:physical_network | physnet1 |
| provider:segmentation_id | None |
| qos_policy_id | None |
| revision_number | 1 |
| router:external | Internal |
| segments | None |
| shared | True |
| status | ACTIVE |
| subnets | |
| tags | |
| updated_at | 2024-02-02T08:45:27Z |
+---------------------------+--------------------------------------+在我们刚刚创建的网络上创建子网。这里我们使用的是；
- 网络：192.168.1.0/24
- DHCP启动：192.168.1.101
- DHCP端：192.168.1.149
- 网关和DNS服务器：192.168.1.1
openstack subnet create subnet1 --network private \
--project $projectID --subnet-range 192.168.1.0/24 \
--allocation-pool start=192.168.1.101,end=192.168.1.149 \
--gateway 192.168.1.1 --dns-nameserver 192.168.1.1列出在 openstack 上创建的网络和子网。
# openstack network list
+--------------------------------------+---------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+---------+--------------------------------------+
| 36577b59-f6e1-4844-a0d8-a277c9ddc780 | private | 6f216cd7-acd3-4c31-bc5e-67875c5dcc09 |
+--------------------------------------+---------+--------------------------------------+
# openstack subnet list
+--------------------------------------+---------+--------------------------------------+----------------+
| ID | Name | Network | Subnet |
+--------------------------------------+---------+--------------------------------------+----------------+
| 6f216cd7-acd3-4c31-bc5e-67875c5dcc09 | subnet1 | 36577b59-f6e1-4844-a0d8-a277c9ddc780 | 192.168.1.0/24 |
+--------------------------------------+---------+--------------------------------------+----------------+7. 添加计算风格和 SSH 密钥
在OpenStack中，flavor用于定义nova计算实例的计算、内存和存储容量。将其视为服务器的硬件配置。
样品；
- m1.tiny 规格：CPU 1、内存 2048M、根磁盘 20G
- m1.small 规格：CPU 2、内存 4096、根磁盘 30G
- m1.medium 规格：CPU 2、内存 8192、根磁盘 40G
请参阅下面有关创建口味的示例。
openstack flavor create --id 1 --vcpus 1 --ram 2048 --disk 20 m1.tiny
openstack flavor create --id 2 --vcpus 1 --ram 4096 --disk 30 m1.small
openstack flavor create --id 3 --vcpus 1 --ram 8192 --disk 40 m1.medium列出 OpenStack 云中可用的 Flavors。
root@osp01 ~(keystone)$ openstack flavor list
+----+-----------+------+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+-----------+------+------+-----------+-------+-----------+
| 1 | m1.tiny | 2048 | 20 | 0 | 1 | True |
| 2 | m1.small | 4096 | 30 | 0 | 1 | True |
| 3 | m1.medium | 8192 | 40 | 0 | 1 | True |
+----+-----------+------+------+-----------+-------+-----------+添加 SSH 密钥
如果不存在，您可以生成 SSH 密钥对。
ssh-keygen -q -N ""添加在命名时创建的密钥。
# openstack keypair create --public-key ~/.ssh/id_rsa.pub default-pubkey
+-------------+-------------------------------------------------+
| Field | Value |
+-------------+-------------------------------------------------+
| created_at | None |
| fingerprint | 19:7b:5c:14:a2:21:7a:a3:dd:56:c6:e4:3a:22:e8:3f |
| id | default-pubkey |
| is_deleted | None |
| name | default-pubkey |
| type | ssh |
| user_id | 61800deb7d664bbcb4f3eef188cc8dbc |
+-------------+-------------------------------------------------+
# openstack keypair list
+----------------+-------------------------------------------------+------+
| Name | Fingerprint | Type |
+----------------+-------------------------------------------------+------+
| default-pubkey | 19:7b:5c:14:a2:21:7a:a3:dd:56:c6:e4:3a:22:e8:3f | ssh |
| jmutai-pubkey | 19:7b:5c:14:a2:21:7a:a3:dd:56:c6:e4:3a:22:e8:3f | ssh |
+----------------+-------------------------------------------------+------+8. 创建安全组
安全组是网络访问规则的命名集合，用于限制有权访问实例的流量类型。当您启动实例时，您可以为其分配一个或多个安全组。如果您不创建安全组，新实例将自动分配到默认安全组，除非您明确指定不同的安全组。
默认安全组名为default.
# openstack security group list
+--------------------------------------+---------+------------------------+----------------------------------+------+
| ID | Name | Description | Project | Tags |
+--------------------------------------+---------+------------------------+----------------------------------+------+
| c1ab8c8f-bd2e-43ab-8f6f-54a045885411 | default | Default security group | 9a102dfdf9a54e8382fefdca727b2553 | [] |
+--------------------------------------+---------+------------------------+----------------------------------+------+
# openstack security group rule list default
+--------------------------------------+-------------+-----------+-----------+------------+-----------+--------------------------------------+----------------------+
| ID | IP Protocol | Ethertype | IP Range | Port Range | Direction | Remote Security Group | Remote Address Group |
+--------------------------------------+-------------+-----------+-----------+------------+-----------+--------------------------------------+----------------------+
| 2a4aa470-935a-474a-a8bd-06623218a287 | None | IPv4 | 0.0.0.0/0 | | egress | None | None |
| 6cf36173-e187-4ed2-82f4-f5ead4ad3134 | None | IPv6 | ::/0 | | egress | None | None |
| 7d4af0e4-fb46-40b5-b447-8e7d22cbdb4d | None | IPv4 | 0.0.0.0/0 | | ingress | c1ab8c8f-bd2e-43ab-8f6f-54a045885411 | None |
| a98b779a-f63a-44ff-834e-c3a557f2864d | None | IPv6 | ::/0 | | ingress | c1ab8c8f-bd2e-43ab-8f6f-54a045885411 | None |
+--------------------------------------+-------------+-----------+-----------+------------+-----------+--------------------------------------+----------------------+让我们创建一个允许所有内容进出的安全组。
openstack security group create allow_all --description "Allow all ports"
openstack security group rule create --protocol TCP --dst-port 1:65535 --remote-ip 0.0.0.0/0 allow_all
openstack security group rule create --protocol ICMP --remote-ip 0.0.0.0/0 allow_all列出安全组以确认其已创建。
# openstack security group list
+--------------------------------------+-----------+------------------------+----------------------------------+------+
| ID | Name | Description | Project | Tags |
+--------------------------------------+-----------+------------------------+----------------------------------+------+
| 287e76b4-337a-4c08-9e3d-84efd9274edb | allow_all | Allow all ports | 9a102dfdf9a54e8382fefdca727b2553 | [] |
| c1ab8c8f-bd2e-43ab-8f6f-54a045885411 | default | Default security group | 9a102dfdf9a54e8382fefdca727b2553 | [] |
+--------------------------------------+-----------+------------------------+----------------------------------+------+下面是一个限制访问的安全组。仅允许访问已知端口，例如 22、80、443、icmp
openstack security group create base --description "Allow common ports"
openstack security group rule create --protocol TCP --dst-port 22 --remote-ip 0.0.0.0/0 base
openstack security group rule create --protocol TCP --dst-port 80 --remote-ip 0.0.0.0/0 base
openstack security group rule create --protocol TCP --dst-port 443 --remote-ip 0.0.0.0/0 base
openstack security group rule create --protocol ICMP --remote-ip 0.0.0.0/0 base9. 添加操作系统映像并创建测试虚拟机
我们有一篇专门的文章介绍如何将操作系统云映像上传到 OpenStack Glance 映像服务。
- 如何将 VM 云映像上传到 OpenStack Glance
上传后通过列出可用图像进行确认。
# openstack image list
+--------------------------------------+-----------------+--------+
| ID | Name | Status |
+--------------------------------------+-----------------+--------+
| 37c638d5-caa0-4570-a126-2c9d64b262b4 | AlmaLinux-9 | active |
| 3ae8095e-a774-468b-8376-c3d1b8a70bdf | CentOS-Stream-9 | active |
| 83bf7ac6-9248-415b-ac89-269f2b70fdb4 | Debian-12 | active |
| 02799133-06ed-483d-9121-e3791c12bb1c | Fedora-39 | active |
+--------------------------------------+-----------------+--------+确认口味
# openstack flavor list
+----+-----------+------+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+-----------+------+------+-----------+-------+-----------+
| 1 | m1.tiny | 2048 | 20 | 0 | 1 | True |
| 2 | m1.small | 4096 | 30 | 0 | 1 | True |
| 3 | m1.medium | 8192 | 40 | 0 | 1 | True |
+----+-----------+------+------+-----------+-------+-----------+列出网络
# openstack network list
+--------------------------------------+---------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+---------+--------------------------------------+
| 36577b59-f6e1-4844-a0d8-a277c9ddc780 | private | 6f216cd7-acd3-4c31-bc5e-67875c5dcc09 |
+--------------------------------------+---------+--------------------------------------+确认配置的安全组。
# openstack security group list
+--------------------------------------+-----------+------------------------+----------------------------------+------+
| ID | Name | Description | Project | Tags |
+--------------------------------------+-----------+------------------------+----------------------------------+------+
| 287e76b4-337a-4c08-9e3d-84efd9274edb | allow_all | Allow all ports | 9a102dfdf9a54e8382fefdca727b2553 | [] |
| c1ab8c8f-bd2e-43ab-8f6f-54a045885411 | default | Default security group | 9a102dfdf9a54e8382fefdca727b2553 | [] |
+--------------------------------------+-----------+------------------------+----------------------------------+------+列出 OpenStack 上配置的密钥对。
# openstack keypair list
+----------------+-------------------------------------------------+------+
| Name | Fingerprint | Type |
+----------------+-------------------------------------------------+------+
| default-pubkey | 19:7b:5c:14:a2:21:7a:a3:dd:56:c6:e4:3a:22:e8:3f | ssh |
| jmutai-pubkey | 19:7b:5c:14:a2:21:7a:a3:dd:56:c6:e4:3a:22:e8:3f | ssh |
+----------------+-------------------------------------------------+------+在 Nova 计算上创建 VM 实例
openstack server create --flavor m1.small \
--image AlmaLinux-9 \
--security-group allow_all \
--network private \
--key-name default-pubkey \
AlmaLinux-910.配置Horizon – OpenStack仪表板
Horizon 是一个基于 Django 的项目，旨在提供完整的 OpenStack 仪表板以及用于从可重用组件构建新仪表板的可扩展框架。仪表板所需的唯一核心服务是身份服务。
安装仪表板 openstack 包。
apt install openstack-dashboard -y打开 local_settings.py 文件进行编辑。
vim /etc/openstack-dashboard/local_settings.py阿尤特
# In line 99 : change Memcache server
CACHES = {
'default': {
'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
'LOCATION': '127.0.0.1:11211',
},
}
# In line 107 : add
SESSION_ENGINE = "django.contrib.sessions.backends.cache"
# line 120 : set Openstack Host
# line 121 : comment out and add a line to specify URL of Keystone Host
OPENSTACK_HOST = "osp01.home.cloudlabske.io"
#OPENSTACK_KEYSTONE_URL = "http://%s/identity/v3" % OPENSTACK_HOST
OPENSTACK_KEYSTONE_URL = "https://osp01.home.cloudlabske.io:5000/v3"
# line 125 : set your timezone
TIME_ZONE = "Africa/Nairobi"
# Add to the end of file
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = 'Default'
# set [True] below if you are using self signed certificate
OPENSTACK_SSL_NO_VERIFY = False还要编辑 Apache 默认 ssl 文件。
# vim /etc/apache2/sites-available/default-ssl.conf
# In line 31,32, configure path to your SSL certificate and key
SSLCertificateFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/cert.pem
SSLCertificateKeyFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/privkey.pem
# In line 41 : uncomment and specify your chain file
SSLCertificateChainFile /etc/letsencrypt/live/osp01.home.cloudlabske.io/chain.pem
r
# change to your Memcache server
指定Memcache地址
# vim /etc/openstack-dashboard/local_settings.d/_0006_debian_cache.py
CACHES = {
'default' : {
#'BACKEND': 'django.core.cache.backends.locmem.LocMemCache'
'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
'LOCATION': '127.0.0.1:11211',
}
}创建新的 OpenStack 仪表板 Apache 配置文件。
vim /etc/apache2/conf-available/openstack-dashboard.conf添加以下内容。
WSGIScriptAlias / /usr/share/openstack-dashboard/wsgi.py process-group=horizon
WSGIDaemonProcess horizon user=horizon group=horizon processes=3 threads=10 display-name=%{GROUP}
WSGIProcessGroup horizon
WSGIApplicationGroup %{GLOBAL}
Alias /static /var/lib/openstack-dashboard/static/
Alias /horizon/static /var/lib/openstack-dashboard/static/
<Directory /usr/share/openstack-dashboard>
Require all granted
</Directory>
<Directory /var/lib/openstack-dashboard/static>
Require all granted
</Directory>启用站点
a2enconf openstack-dashboard
a2enmod ssl
a2ensite default-ssl复制策略文件。
mv /etc/openstack-dashboard/policy /etc/openstack-dashboard/policy.org重新启动 Apache Web 服务器。
chown -R horizon /var/lib/openstack-dashboard/secret-key

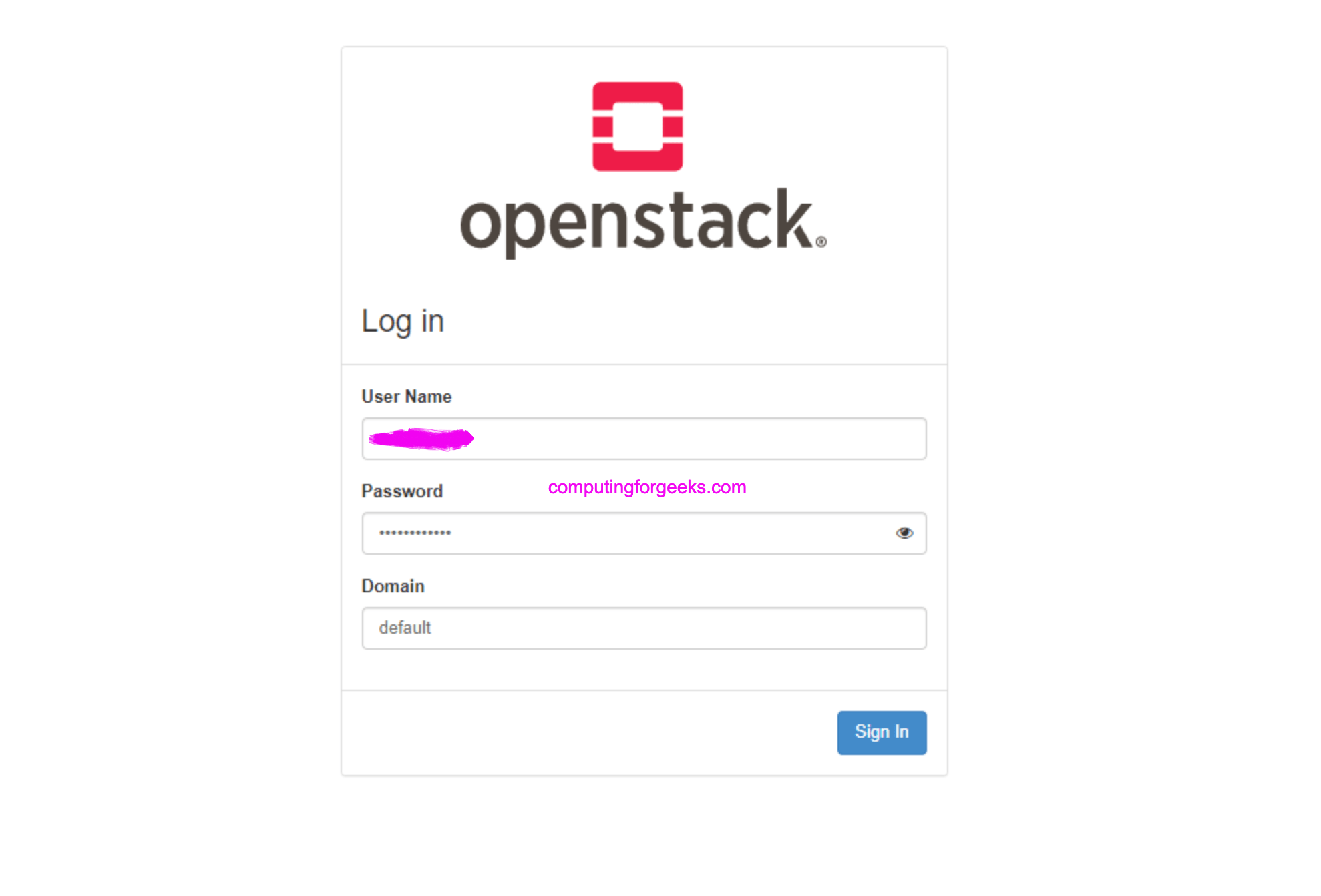

systemctl restart apache2您现在可以通过 https://（服务器的主机名）/ 访问 Horizon 仪表板
使用 Keystone 中的用户和匹配的密码登录。
结论
在 Debian 12 (Bookworm) 上安装 OpenStack 可为您提供强大、可靠且高度可扩展的云基础设施解决方案。如果您逐步按照本文中概述的步骤进行操作，您应该能够自信地设置利用 Debian 稳定性的 OpenStack 云系统。我们希望这篇文章对您有很大帮助，感谢您访问我们的网站。
为您推荐
将 Views 文件夹从 ASP.NET 项目中分离是一个常见需求，比如为了实现模块化或分层架构。以下是实现此功能的完整步骤，从项目中分离 Views 文件夹，将其移到另一个独立的文件夹或项目中，并确保视图渲染仍然正常。1. ..
让 AI 写出 Google 认可的文章，核心在于满足 Google 的搜索排名算法要求。这些要求通常围绕以下几个关键点展开：内容质量、用户体验 和 SEO 优化。以下是详细指导：一、内容质量确保文章原创且有价值避免抄袭：Goog..
使用的CentOS版本是7.9，其他版本也可以。超级推荐的是搭建shadowsocks服务端，安装配置都很简单，几分钟就搞定，客户端支持PC移动端，下面是安装shadowsocks的过程，只要复制粘贴命令就行了，文件夹路径都不需要改..
从 .NET Framework 迁移到 .NET Core 或 .NET 6/7 是一个提升性能和跨平台能力的关键过程。以下是迁移的主要步骤和注意事项：迁移步骤1. 评估当前项目依赖项检查：确保所有第三方库和NuGet包都有与 .NET Core/.NET 6..
优化ASP.NET Core应用性能需要从代码、数据库、配置、服务器和部署等多个层面进行综合考虑。以下是一些优化ASP.NET Core应用性能的关键方法和技巧：1. 代码级优化使用异步编程：避免阻塞线程，通过async和await处理I..
SourceTree下载提取码: ni9m 需翻墙或者破解注册当前只有Win的版本，Mac自行百度很多人用git命令行不熟练，那么可以尝试使用sourcetree进行操作。然鹅~~sourcetree又一个比较严肃的问题就是，很多人不会跳过注册或者..
在 Chrome 开发者工具中查看元素的 :hover 样式，可以通过以下步骤实现：打开开发者工具：右键点击页面中的元素，然后选择“检查（Inspect）”或按下 F12 或 Ctrl + Shift + I (Windows) / Cmd + Option +..
.NET 爱好者！我刚刚偶然发现了一个非常酷的新 PR，它被合并到 .NET 运行时存储库中，我想分享一个例子。希望您能为新的 .NET 版本大肆宣传！在即将到来的 .NET 9 版本中，我们预计会有一个名为 .它在这里让您的异步..
数据库交互是几乎所有应用程序不可或缺的一部分，开发者们常常需要对数据库进行各种操作，包括插入、更新、删除和查询等。然而，在开发过程中直接对真实数据库进行操作不仅耗时耗力，还可能带来数据一致性和安全性的..
DockerUI 是由国内开发者打造的一款优秀的 Docker 可视化管理工具。该工具拥有简洁直观的UI界面，可以轻松进行Docker主机管理、集群管理，以及Docker任务的编排等操作。DockerUI不仅展示了资源利用率、系统信息和更..
我们从下面这幅图开始，下图显示了三种渲染模式，分别称之为静态SSR、交互式SSR(即之前的BlazorServer)、交互式CSR(即之前的BlazorWasm)。还有一种渲染模式BlazorHybrid，稍后说。一、先浅层理解一个图例静态SSR：经..
CSS设计模式主要包括OOCSS、SMACSS和BEMCSS等。以下是对这些模式的具体介绍：OOCSS：面向对象的CSS，旨在编写高可复用、低耦合和高扩展的CSS代码。它将抽象（结构）和实现（样式）分离，抽离公共代码，以提高代码的..
不论是在外出差，还是在家临时办公，现在很多设备携带起来都不是那么方便，在这种情况下，有一个轻巧而高效的操作系统环境就显得格外关键。今天，要给大家介绍一款超级实用的便携式系统启动盘，凭借其独特功能和卓越..
.NET Framework并未完全被淘汰，但它的某些版本确实已经停止支持。微软在2023年11月10日停止了对.NET Framework 4.8之前的版本的支持。这一决策意味着使用这些旧版本的应用程序将不再获得安全更新和其他维护，从而可..
单元测试是确保代码质量和可靠性的重要手段。当我们的代码依赖于外部系统、数据库或第三方服务时，编写有效的单元测试可能会变得复杂且耗时。为了简化这一过程，模拟（Mocking）技术应运而生。在 .NET 生态系统中，M..
在网页设计和开发中，CLS（Cumulative Layout Shift）是指页面布局的累计偏移量。当一个用户与页面互动时，如果页面的某些元素突然改变位置或大小，导致整个布局发生偏移，就会产生布局偏移。这种偏移可能会影响用户..
在 Angular 单元测试中，我们经常需要模拟异步操作，比如 setTimeout。提高测试速度： 真实环境下的 setTimeout 会阻塞测试，导致测试运行时间过长。确保测试的可靠性： 模拟 setTimeout 可以让我们更好地控制异步操..
直接给 sessionStorage 加锁是不可能的。sessionStorage 的本质： sessionStorage 是浏览器提供的一种用于在当前浏览器会话中存储数据的机制。它存储在客户端，数据仅在当前浏览器窗口或标签页中有效。加锁的必要性..
对Redis最常见的几个问题，简要的说下我的理解与解决方法。数据同步指Redis做为缓存，在数据变化时，怎么保持与数据库数据同步的。一般解决方案为：缓存双删(同步方案大都采用删除缓存，而不会更新新缓存。缓存击穿..
Vue 3.5引入了响应式属性解构、useTemplateRef方法、useId实用函数、内部响应性重构等新特性。以下是具体介绍：响应式属性解构此功能允许开发者在defineProps宏中解构属性而不会失去响应性，这为组件间的属性传递提..
